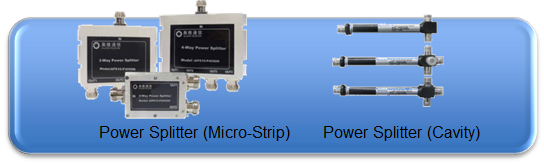

Power Splitter
•

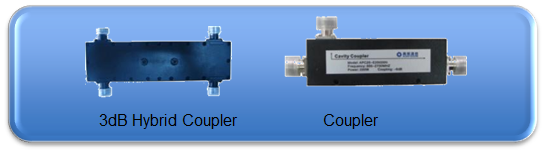

Coupler
•
Attenuator
•
Combiner
•
Filter
•
Duplexer
•
Load
We can provide product
customization per customer’s
request.

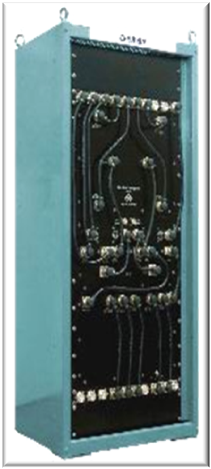

Combiner / Point of Interface (POI)
•
Antenna
•
Separate system UL/DL help decrease mutual
interference.
•
Interior components adopt High-Q resonant
cavity structure with low loss, able to endure
high power.
•
Flexible configuration with great extendibility.
•
Standardized component design allowing the
interchange ability of the same modules.
•
Ultra-wide band 50Mhz～2500Mhz (The lowest is
compatible with FM, and the highest is
compatible with WLAN).
•
19” cabinet with integrated framework design.
•
Perfect and reliable monitoring & control
functions.

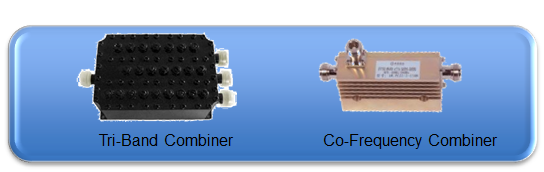

Co-Frequency Band Combiner
APN10-W100D
•
Two UMTS2100 BTS Sharing Same Feeders,
TMAs and Antennas.
•
Multiple DC/AISG BYpass Configurations.
•
Light weight and Small Footprint.
•
ROHS Compliant.
•
Housing is IP67 Rated.
APN10-W100D Datasheet
In-Building Solution Components
